S-Bahn Munich

Real-time passenger information with MARIS

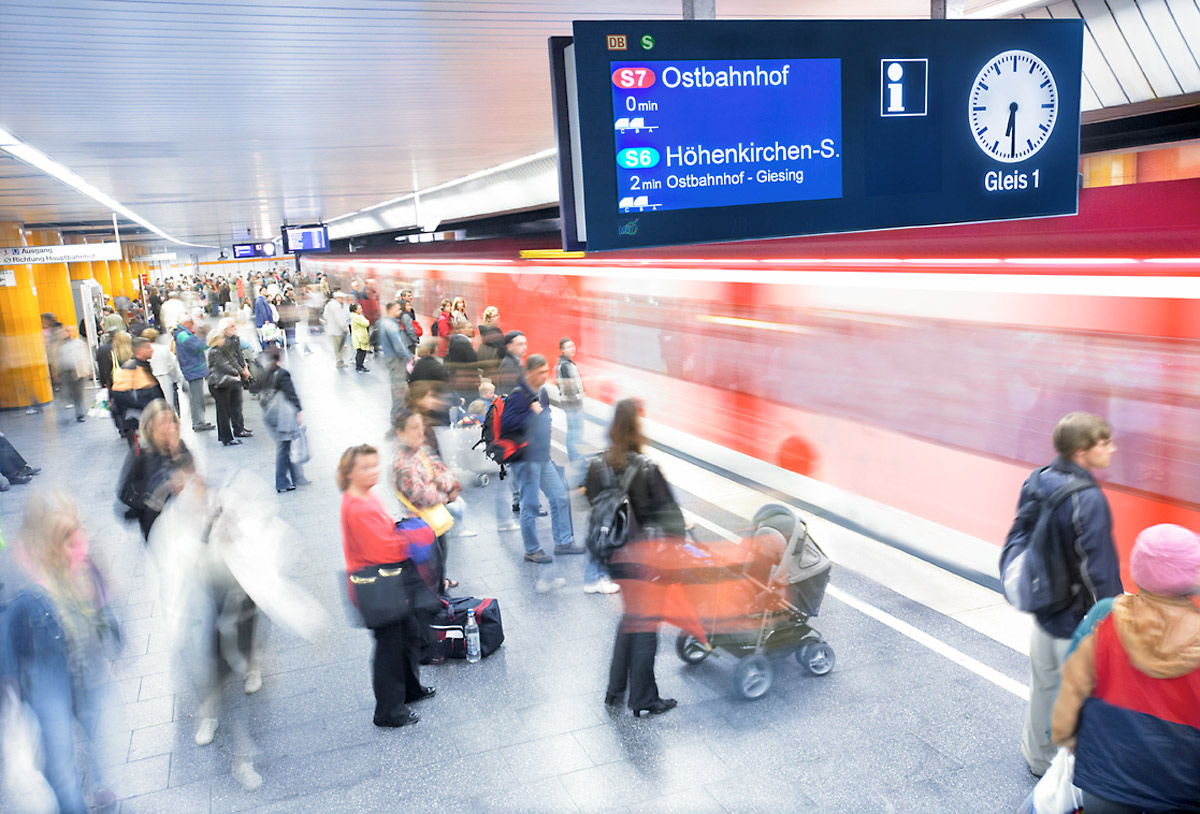

For the S-Bahn area of Munich, we have introduced the highly available information system MARIS. The goal was to significantly improve the quality of passenger information at the 150 stations – with automated, reliable control of displays and speakers, even in the complex interaction of multiple transport providers.

The system processes forecasts, schedule deviations, and train movements in real-time and transmits them automatically, synchronously, and in a targeted manner to passengers.

Since mid-2025, we have successfully integrated the DB Lightgate system – a system that, thanks to innovative sensor technology on the track, can measure the capacity utilization in the trains. This allows passengers to see early on which cars are already very full. They can distribute themselves accordingly on the platform to use a car with fewer passengers.

.
.
.
.

Our Approach

Automated. Modular. Multi-tenant capable.
MARIS combines deeply integrated data processing with modular software architecture. It obtains information from various DB systems as well as from external railway undertakings (RUs), calculates operational changes, and updates passenger information network-wide in fractions of a second.

System components overview

  • Real-time data processing and integration of the DB Lightgate capacity display
    Use of forecast, disposition, and location data from ISTP, LEIDIS, and other systems
  • Train identification and event control
    Automatic detection of train arrivals, platform changes, cancellations, and replacement services
  • Multimodal display systems

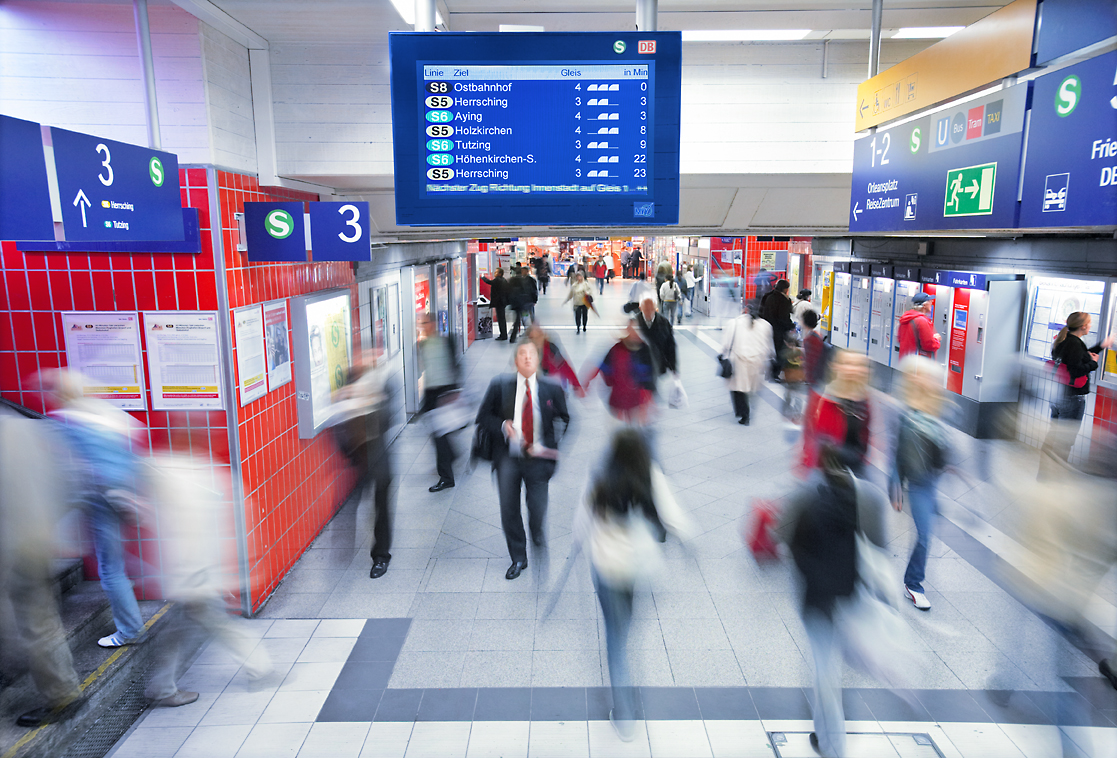

    Dynamic presentation via LCD and TFT displays
  • Acoustic information with CURA®
    Live and text-to-speech announcements in various languages, time and event-controlled, configurable by volume and sound quality
  • User interface for real-time operational interventions
    Graphical-topological view of all stations with direct device access
  • Integrated timetable editor
    Editing of regular and special timetables including additional information such as train composition and connecting services

Innovation with foresight

A central algorithm continuously calculates the valid timetable situation for each RU. Even during delays, disruptions, or replacement services, MARIS automatically generates precise forecasts and seamlessly transfers them to display and public address systems.

Predefined reaction patterns (“business transaction forms”) enable quick responses to operational deviations with minimal operational effort and maximum information quality.

Success record

  • Central control of passenger information at 150 stations
  • Redundant dual computer system for highest availability
  • Fully automated control of display and speaker systems
  • Interface integration for DB systems, external RUs, and planning tools
  • High degree of automation, low error susceptibility, reduced personnel deployment
